Root forks
Are you looking for root forks for loaders with an operating weight from 11 tons to 35 tons? JST offers a wide selection of root forks for various tasks.
Click below to see prices, measurements and other details in our catalogue.
If you are looking for a custom design, please contact us. We have many years of experience in custom-made attachments.

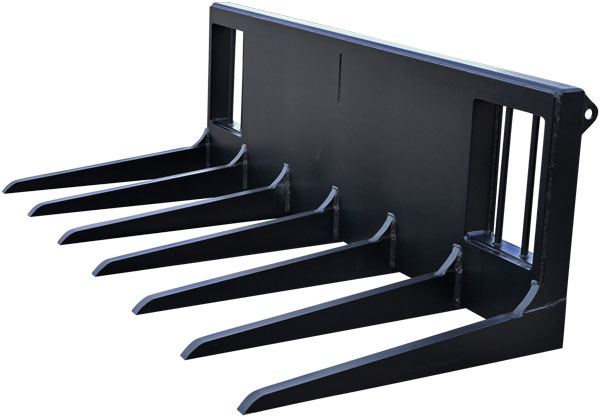

GG Root fork 1 | 11 – 20,5 tons machine
The GG root fork 1 is made for loaders in sizes from 11 – 20.5 tons, and is delivered as standard with a Volvo BM bracket, but can also be supplied with other brackets such as JST/Viby wedge bracket, CAT SW2007, CAT SW2008, CAT Fusion, Volvo L150-180.
You can buy extra teeth to create a smaller distance, so the root grapple fits your needs. The teeth on our root fork are made from 50mm H450 high strength steel for better durability.
Furthermore, it is possible to purchase a maize base plate with cutting edge and fork pockets, side plates, grapple top in H450 high-strength steel and a riddle spill guard. The riddle spill guard helps to protect the loading arm of the machine and to achieve the least possible spillage.
The root fork is available in following widths: 250 cm, 275 cm, 300 cm, 325 cm, 350 cm.

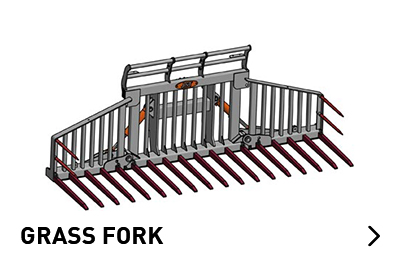

The JST GG root fork 1 is very good and effective tool for grass and maize – click here fore more info.
GG Root fork 2 | 20,5 – 27 tons machine
The JST GG root fork 2 is larger than our standard GG root fork. This attachment is suitable for loaders with an operating weight from 20,500 kg to 27,000 kg and is delivered as standard with a Volvo L150-180 bracket.
It is possible to buy extra teeth to create a smaller distance between the teeth, so that the distance can be just as you want. For extra durability, the teeth on our root fork are made from 50mm H450 high strength steel.
Furthermore, it is possible to purchase a grapple top in H450 high-strength steel and a riddle spill guard. The riddle spill guard helps to protect the loading arm of the machine and to achieve the least possible spillage.
Root fork 2 is available in the widths 325 cm, 350 cm, 375 cm, 400 cm.
This size root grab is highly effective for waste sorting in large quantities, for use in a landfill or for other types of work that require attachments of this size.
Click to see specifications and prices for the root forks in our catalogue.
Contact us for prices and details on other sizes.

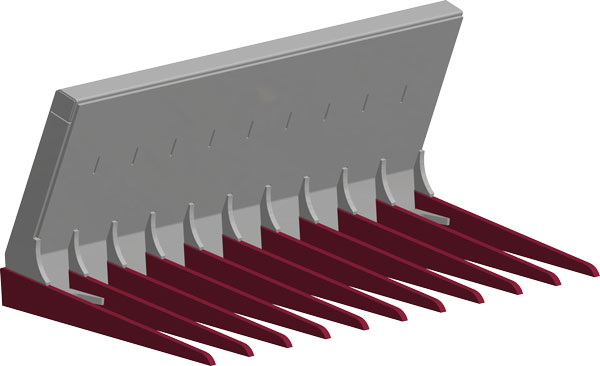

GG Root fork 3 | 27 – 35 tons machine
JST GG root fork 3 is the largest root fork in our range. This attachment is suitable for loaders with an operating weight from 20,500 kg to 27,000 kg.
It is possible to purchase extra teeth to reduce the distance between the teeth, so that the distance can be adjusted according to your needs. This could be useful if the root fork is for moving smaller materials.
For extra durability, the teeth on our root fork are made from 50mm H450 high strength steel.
Furthermore, you can purchase a grapple top in H450 high strength steel as well as a riddle spill guard. The riddle spill guard helps to protect the loading arm of the machine and to achieve the least possible spillage.
Root fork 3 is available in the widths 350 cm, 375 cm, 400 cm, 425 cm.
This size root fork is highly effective for waste sorting in large quantities, for work on a landfill site or for other types of work that require attachments of this size.
Click to see specifications and prices for the root forks in our catalogue.
Feel free to contact us for further details or questions.
NOTE: All prices are excl. raw material surcharge of currently 0%
