Snow ploughs for loaders and tractors
Snow removal during the winter season requires the right equipment. JST offers a range of heavy-duty snow ploughs for mounting on construction machinery, loaders and tractors. We have many years of experience in manufacturing snow ploughs for the Scandinavian market and are happy to advise you on which snow equipment is right for your needs.
We offer both diagonal snow ploughs and universal snow ploughs, which can be set up as a diagonal, point or Y-ploughs.
Snow ploughs in stock
During the season we often have selected models in stock. Please contact our sales department to learn more.
Vario / universal snow ploughs
The ultimate snow plough with two plough blades, so you can adjust it as needed for fast and efficient snow removal on both roads and squares, whether you want to clear or move snow.
Three different settings:
Diagonal plough
The snow plough can be side-shifted and function as a side plough/diagonal snow plough (angle 27 or 35 degrees with right/left hydraulic swing).

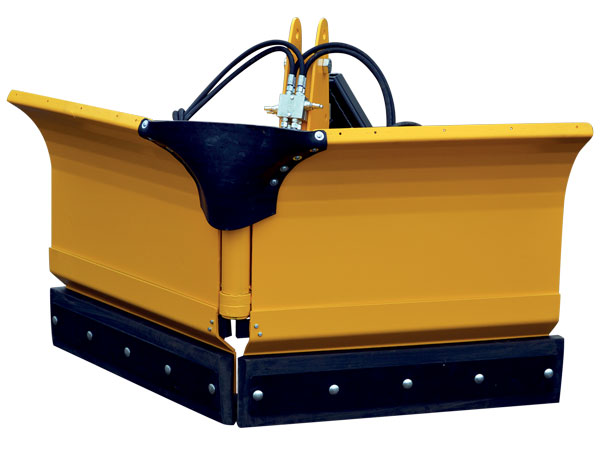

V-plough
As a point/v-plough, the snow plough clears the snow on both sides. This is especially useful in situations with extra-high snow.
Y-plough
Set the plough as a u-plough/y-plough so you can push the snow in front of you if you need to clear snow in a car park or similar.
Specifications
- Width
- 150 cm, 175 cm, 200 cm, 250 cm, 300 cm, 325 cm, 350 cm, 400 cm
- Extras
- Position light, support wheel set, steel blade, electric valve for switching between two hydraulic circuits, brackets or A-frame with floating position.
- Flap blades protect the snowplow in the event of a collision
- All JST snowplows are fitted with two-part or four-part folding blades with springs, which ensure that the snowplow gives way and protects the suspension and the machine if you bump into curbs etc.
- Rubber blades or H450 steel blades
- The snowplow is supplied with rubber blades as standard. You can purchase H450 high-strength steel blades, which you can mount behind the rubber blade, so that you wear less on the rubber blade. You may also choose to run the snowplogh with the steel blade only – without rubber blades in front.
- Center float ensures efficient snow removal
- The snowploghs are delivered as standard with central floating in the form of floating three-point suspension. This ensures that the snowplogh follows the slope of the road and provides the most optimal snow clearing. The small snow ploghs are also available with a fixed A-frame, and the larger ploghs can be purchased with an A-frame with floating position as extra.
- Compatible with the following machines
- Loaders: 1,200 – 3,500 kg, 3,500 – 6,500 kg, 6,500-15,000 kg
- Tractors: 30-70 HK, 60-120 HK, 100-180 HK

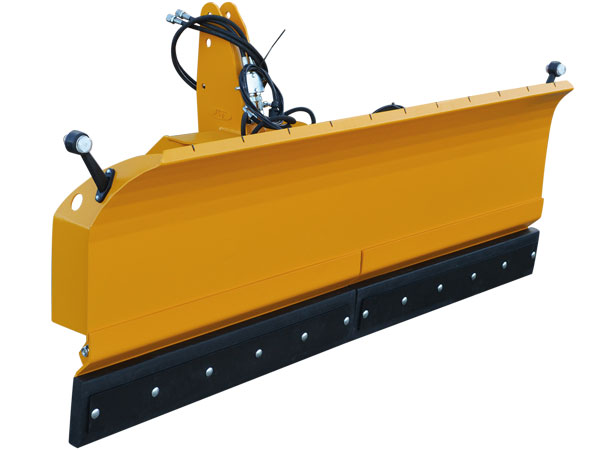

Diagonal snow ploughs
The diagonal snow plough/snow scraper is the most commonly used type of snow plough for snow removal on roads. The snow plough can be angled 27 or 35 degrees with right/left hydraulic swing.
Specifications
- Width
- 150 cm, 175 cm, 200 cm, 250 cm, 300 cm, 325 cm, 350 cm, 400 cm
- Extras
- Position light, support wheel set, steel blade, electric valve for switching between two hydraulic circuits, brackets or A-frame with floating position.
- Flap blades protect the snowplow in the event of a collision
- All JST snowplows are fitted with two-part or four-part folding blades with springs, which ensure that the snowplow gives way and protects the suspension and the machine if you bump into curbs etc.
- Rubber blades or H450 steel blades
- The snowplow is supplied with rubber blades as standard. You can purchase H450 high-strength steel blades, which you can mount behind the rubber blade, so that you wear less on the rubber blade. You may also choose to run the snowplogh with the steel blade only – without rubber blades in front.
- Center float ensures efficient snow removal
- The snowploghs are delivered as standard with central floating in the form of floating three-point suspension. This ensures that the snowplogh follows the slope of the road and provides the most optimal snow clearing. The small snow ploghs are also available with a fixed A-frame, and the larger ploghs can be purchased with an A-frame with floating position as extra.
- Compatible with the following machines
- Loaders: 1,200 – 3,500 kg, 3,500 – 6,500 kg, 6,500-15,000 kg
- Tractors: 30-70 HK, 60-120 HK, 100-180 HK
Compatible tractors and loaders
Our JST snow ploughs fit the following machine sizes (tractors, construction machines/loaders):
Construction equipment: 1.200 – 3,500 kg, 3,500 – 6,500 kg, 6,500-15,000 kg
Mini loader, compact loader, backhoe loader, wheel loader, telehandler, compact wheel loader, front loader, backhoe loader and loader from Cat, Volvo, Manitou, JCB, Hitachi, Matbro, Trima, Bobcat, Giant, Weidemann, Schaeff-Terex, Komatsu, Case, Terex, Fermec, Atlas, New Holland, New Holland, Hidromek, Yanmar, Schäffer
Tractor: 30-70 HK, 60-120 HK, 100-180 HK
John Deere, Case, Fendt, New Holland, Massey-Ferguson, Claas, Valtra, Detz-Fahr, Kubota, Landini, Same and McCormick
Which snow plough is right for your needs?
Not sure which snow plough is right for your snow removal needs? We have many years of experience in manufacturing snow ploughs for the Scandinavian market and are happy to advise you. Contact one of our sales representatives for advice.
