High tip buckets and other buckets with high tip
Do you need a high tip bucket for grain, pellets, wood chips or the like? High tip buckets provide extra lifting height to loaders. JST has a wide selection for both large and small machines. The buckets are available from 315 liters up to 17,730 liters – with a good selection of sizes in between.
Are you working with heavy material like scrap metals or iron? Choose a JST loading bucket with high tip and do the job without problems. Click below to see the different types of buckets with high tip, and get access to details such as widths, volume, weight and prices in our catalogue.
Do you need something that isn’t standard? Then please contact us – we can always find a solution.

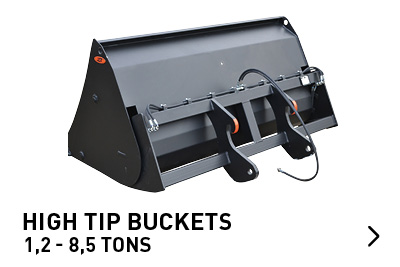

High Tip Buckets | 1.2 – 8.5 tons
Our high tip buckets for 1.2 – 8.5 tons are made for smaller loaders such as mini loader, mini articulated loader, front loader, backhoe loader, larger telehandler and machinery with Z-kinematics.
In this category there is also a side tip bucket for loaders and backhoe loaders 5.5 – 8.5 tons.
For some articulated machine types, a box must be built into the bucket for the link-arm.
Optional extras: Cutting edge, heel and safety hook (Pejo)

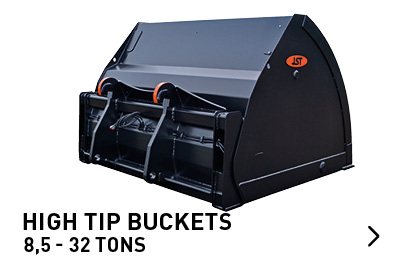

High Tip Buckets | 8.5 – 32 tons
We make high tip buckets for loaders from 8.5 tons to 32 tons. The high tip buckets are made for loose materials such as grain, pellets or wood chips with a density of up to 1 ton per m3. With an HD (heavy duty) bucket, you can work with materials with a density up to 1.6 tons per m3.
A larger proportion of the bucket is made of high strength steel H450, which is 3-4 times as strong as ordinary structural steel.
All of the high tip buckets are with damped cylinders and rubber stops between bucket and rear frame.
If you wish to have peepholes in the top of the rear bucket part, this can be selected as add-on.
Other additional extras: Three-part bolt-on blade, cutting edge, riddle spill guard, spill guard, spill plate over rear frame and central lubrication system for six lubrication points.
You can choose different ears, so that the bucket fits to your machine and you can add a Pejo safety hook.
We also offer a high-tip potato bucket for loaders from 11 – 18.5 tons.

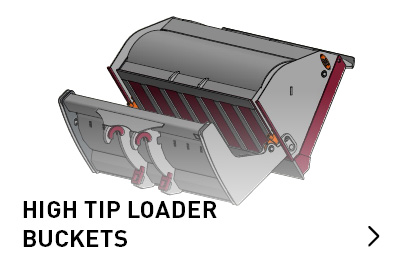

Loader buckets with high tip | 8.5 – 40 tons
Do you work with heavy materials? And do you wish to have that extra lifting height on your loader bucket that the high tip provides?
Then you need to choose a JST loader bucket with built-in high tip. Our loader buckets with high tip are stronger than our high tip buckets, so if you are working with materials such as scrap metal and iron, then the solid loader bucket is the right choice for you.
The loader buckets are available with different side profiles and all sizes are available in HD (heavy duty) where the bucket is made of high strength steel H450 (3-4 times as strong as normal structual steel).
You can build on high tip on our loader buckets on machines from 8.500 – 40.000 kg.

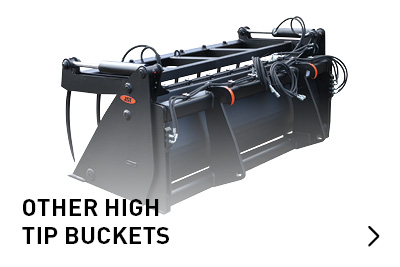

Other buckets with high tip
Our potato bucket and root crop bucket for front loaders and loaders with an operating weight of 3.5 – 8.5 tons are available with and without high tip. For high tip on some articulated machine types, a box must be built into the bucket for the link arm.
We also offer a high-tip potato bucket for loaders from 11 – 18.5 tons.
We also offer grapple buckets and low profile grapple buckets with high tip for 1.2 – 18 tons.

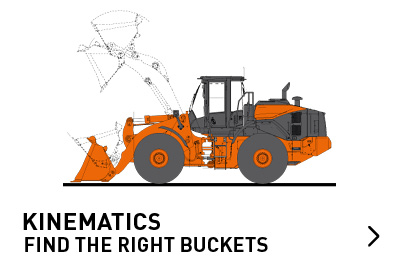

Kinematics on loading boom | loader 8.5 – 40 t
Kinematics on the loading boom are important when choosing your bucket. The bucket is adapted to the kinematics of the loading boom.
Z-kinematics
Z-kinematics is the most used system for loading tasks. Our high tip bucket model Z is compatible with this system. In some cases, the loading bucket cannot be as open as on the other kinematics models.
Parallel kinematics
Parallel kinematics is widely used where the machine is mostly used for handling tasks with e.g. pallet forks.
The system offers the possibility to use tall, upright equipment such as our high tip bucket model P, upright volume bucket or clamp devices.
TP kinematics
TP kinematics only excists on Volvo machines up to and including L220.
TP kinematics is a combination of the two kinematics sysstems described above. You can therefore use high upright attachments such as our high tip bucket model P or upright volume buckets or clamp devices.
